Gundrilling

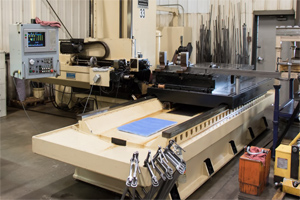

CTM GD 650 x 420Craftsman is known as a leader for quality and service in the Chicago area for Gun Drilling and Deep Hole Drilling, as it is also known as. Craftsman Mold Bases utilizes, state of the art gun drilling machines, in order to keep all their key services in-house. Whether your order is for the Oil And Gas Industry or the highly competitive Aerospace and Defense Industries, Craftsman's gun drilling division will meet a variety of tolerances and capabilities, including capacities from 0.062" inches to 2.000" inches in diameter. Holes 0.437" inches to 2.000" inches in diameter and can be drilled to a depth of 80 inches from one side.

PLEASE SEND ALL INQUIRIES TO:    This email address is being protected from spambots. You need JavaScript enabled to view it.     ATTN: COLIN HORN

In addition, Craftsman's gun drilling machines have a work holding capacity of 40,000 pounds. We offer table dimensions up to 55 inches by 96 inches, with table travel 48 inches vertical by 96 inches horizontal.

Counterboring, tapping, clamp slots and eye bolts are just some of the Value Added Machining services we provide

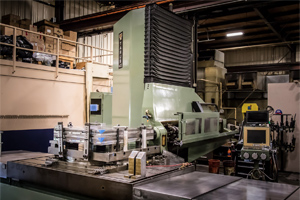

Craftsman is excited about our recently purchased Taurus gundrill! It has a heavy duty multi-spindle and 4-axis traveling column. The table load capacity is 60,000 lbs with drilling spindle speeds of 0-3400 rpm. It has an extra heavy duty milling spindle, auxiliary spindle speeds of 0-2000 rpm and a CAT 50 auxiliary Spindle Taper. It uses the STS (single tube system) drill. This drill removes chips through an internal tube, eliminating all the problems of chip binding and jamming which often occur with conventional deep hole drills. With the STS drill, operators can increase feed up to 8 ipm for standard cooling holes. As a result, they cut part cycle time by up to 50 percent!

INDUSTRIES SERVED:

  • PLASTIC INJECTION MOLD BASES
  • THERMOFORMED MOLDS
  • OIL AND GAS DRILLING/HYDRAULIC FRACKING
  • RUBBER MOLDS - HEATER BAND LINES
  • BLOW MOLDS
  • AEROSPACE
  • DEFENSE
  • MEDICAL
Customer Feedback

"We received the mold base late Friday. The tool makers started the assembly process over the weekend. Let the guys know this is the best workmanship we’ve ever seen on a base.

Who we are...

Craftsman Tool & Mold creates precision, Stack Mold Bases and Rotational Spin Stack Mold Bases, for the Multi-Shot injection mold industry across North and South America. Many of the mold base programs Craftsman Mold Bases spearheads, directly, target the In-Mold Labeling (IML) and In-Mold Assembly (IMA) areas of specialty. Craftsman Mold Base customers rely heavily on Craftsman’s ability to achieve stringent tolerances and alignment in their manufacturing of their mold base programs. Cavitation requirements often exceed 144 cavities and have tolerances often times in microns.
