Stack Mold Bases

As technology and trends in injection molding change, Stack Molds can effectively double and triple the output of an injection molding machines production. Today it is possible to double the Cavitatiies in a thin wall packaging mold by utilizing a stack mold configuration. It all starts with the most stable foundation, “the Mold Base”, this is where it all begins. Craftsman Mold Bases give you that peace of mind engineering your 2,3, and 4 level stack molds, to design your parts to the most stringent of tolerances, many times to.0002", and not sacrifice on the foundation of the mold. These bases are ideal for tools requiring In Mold Labeling (IML) and In Mold Close (IMC).

Stack Mold applications can be: Thin Wall Packaging applications, Caps and Closures, Ice Cream Containers, Cups, Butter Tubs etc.

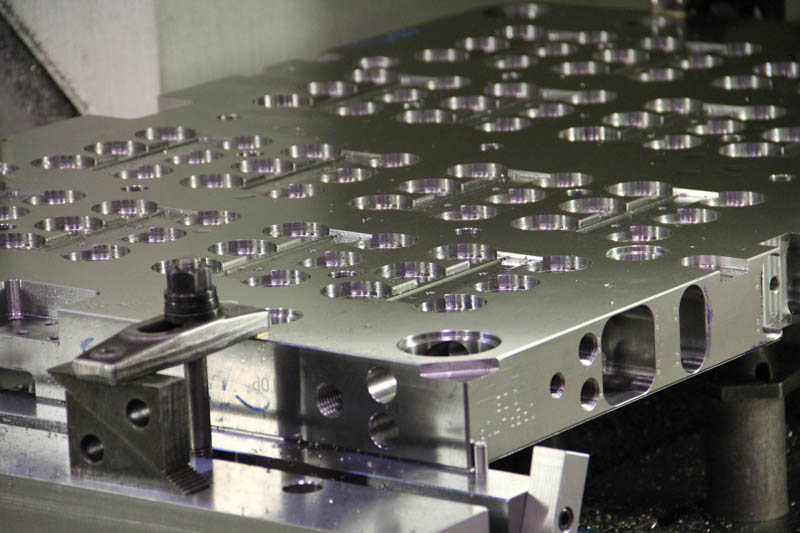

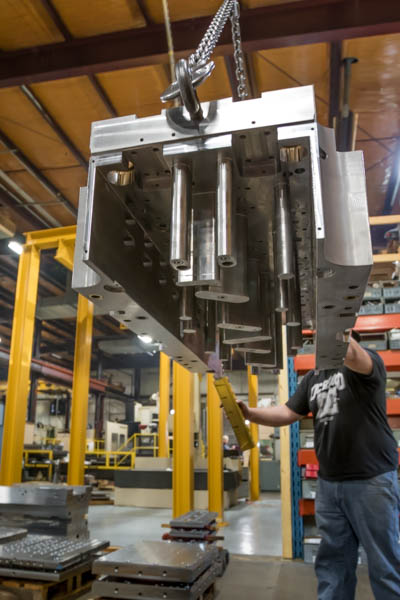

Craftsman Custom Mold Bases Plate 4.jpg

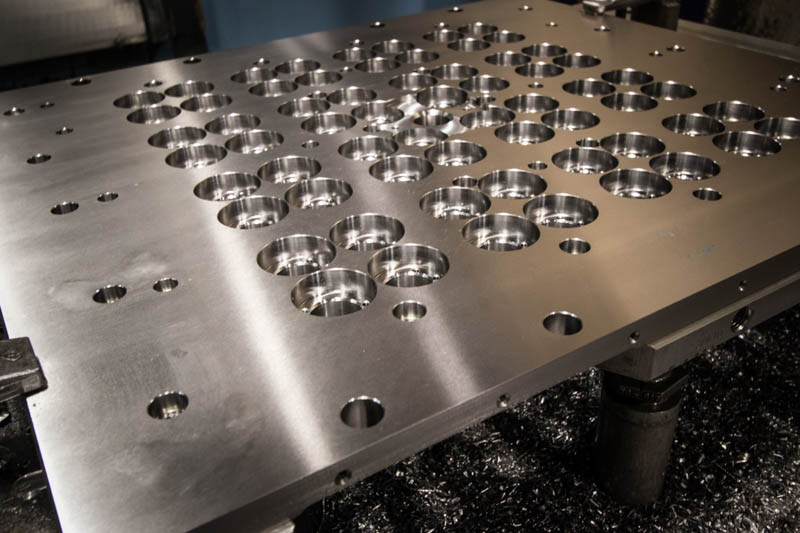

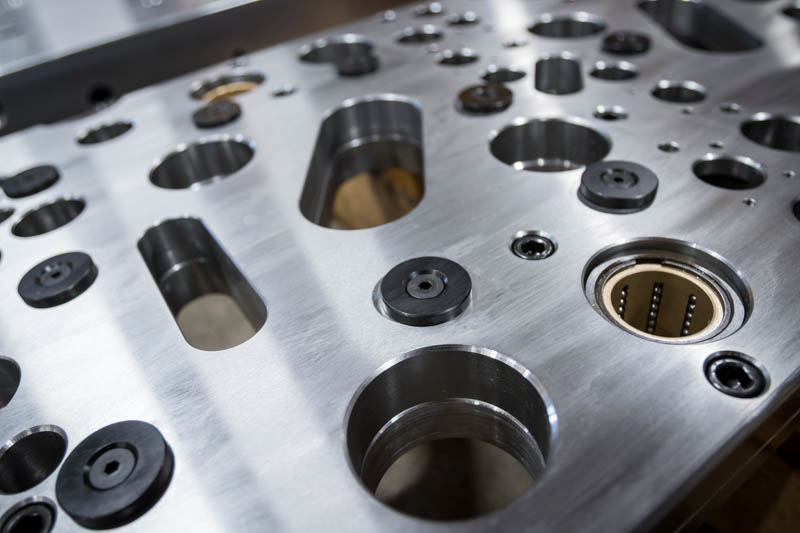

Craftsman Custom Mold Plates_.jpg

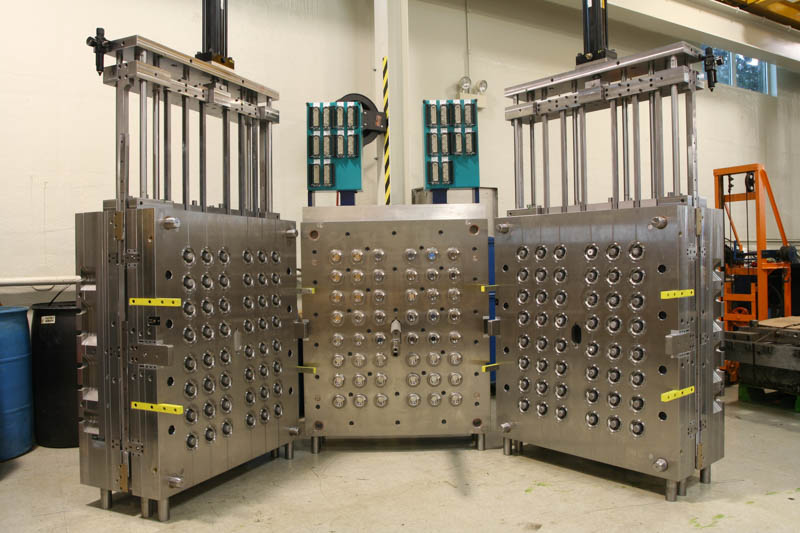

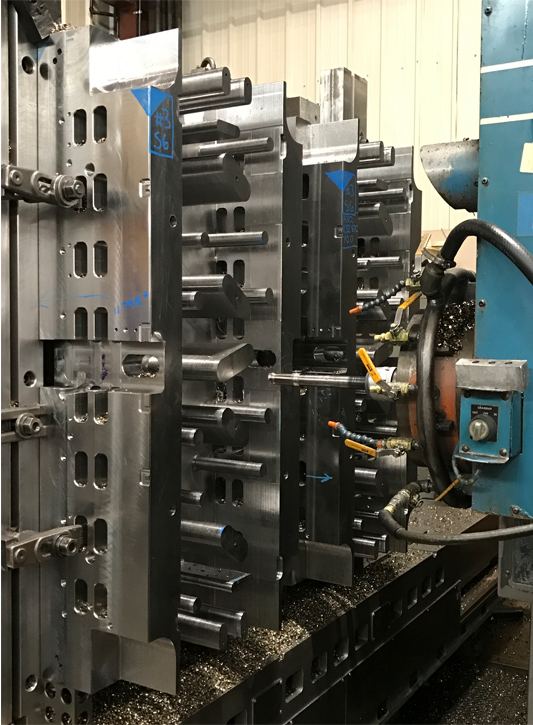

Craftsman Stack-up Image 2_.jpg
















Customer Feedback

"Just wanted to thank you again for the tour of your shop. We truly appreciate the time you took with us! You have a great bunch of guys working for you! We came away with a great feeling of comfort with your team on all of our projects. I hope you plan a trip to our area soon so we can return the favor and show you our shop. I've been in the trade since 1979 and can honestly say you have the most positive attitude employees working for you I have ever seen. Please don't hesitate to contact me if you have any more questions."

Who we are...

Craftsman Tool & Mold creates precision, Stack Mold Bases and Rotational Spin Stack Mold Bases, for the Multi-Shot injection mold industry across North and South America. Many of the mold base programs Craftsman Mold Bases spearheads, directly, target the In-Mold Labeling (IML) and In-Mold Assembly (IMA) areas of specialty. Craftsman Mold Base customers rely heavily on Craftsman’s ability to achieve stringent tolerances and alignment in their manufacturing of their mold base programs. Cavitation requirements often exceed 144 cavities and have tolerances often times in microns.
